maxflow

Maximum flow in graph

collapse all in page

Syntax

Description

example

mf = maxflow(G,s,t) returns the maximum flow between nodes s and t. If graph G is unweighted (that is, G.Edges does not contain the variable Weight), then maxflow treats all graph edges as having a weight equal to 1.

example

mf = maxflow(G,s,t,algorithm) specifies the maximum flow algorithm to use. This syntax is only available if G is a directed graph.

example

[mf,GF] = maxflow(___) also returns a directed graph object, GF, using any of the input arguments in previous syntaxes. GF is formed using only the edges in G that have nonzero flow values.

example

[mf,GF,cs,ct] = maxflow(___) additionally returns the source and target node IDs, cs and ct, representing the minimum cut associated with the maximum flow.

Examples

collapse all

Open Script

Create and plot a weighted graph. The weighted edges represent flow capacities.

s = [1 1 2 2 3 4 4 4 5 5];
t = [2 3 3 4 5 3 5 6 4 6];
weights = [0.77 0.44 0.67 0.75 0.89 0.90 2 0.76 1 1];
G = digraph(s,t,weights);
plot(G,'EdgeLabel',G.Edges.Weight,'Layout','layered');

Determine the maximum flow from node 1 to node 6.

mf = maxflow(G,1,6)

mf =

    1.2100
Open Script

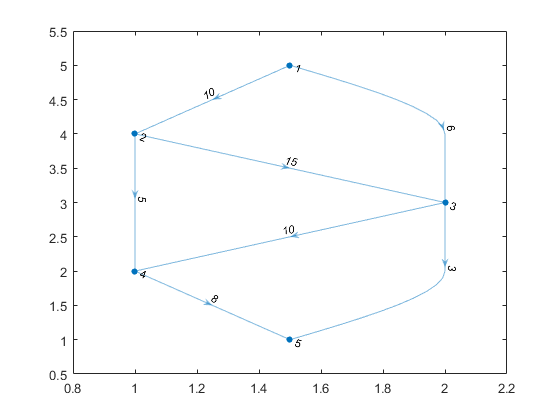

Create and plot a graph. The weighted edges represent flow capacities.

s = [1 1 2 2 3 3 4];
t = [2 3 3 4 4 5 5];
weights = [10 6 15 5 10 3 8];
G = digraph(s,t,weights);
H = plot(G,'EdgeLabel',G.Edges.Weight);

Find the maximum flow value between node 1 and node 5. Specify 'augmentpath' to use the Ford-Fulkerson algorithm, and use two outputs to return a graph of the nonzero flows.

[mf,GF] = maxflow(G,1,5,'augmentpath')

mf =

    11


GF =

  digraph with properties:

    Edges: [6×2 table]
    Nodes: [5×0 table]

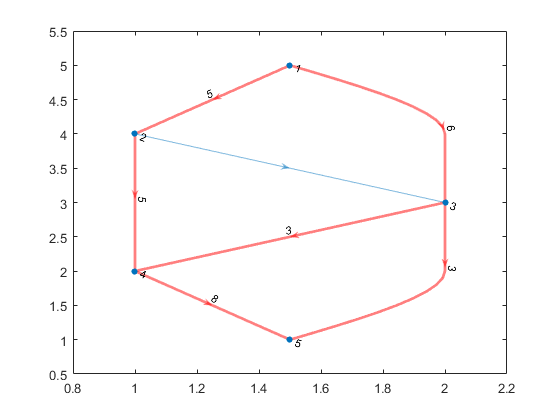

Highlight and label the graph of nonzero flows.

H.EdgeLabel = {};
highlight(H,GF,'EdgeColor','r','LineWidth',2);
st = GF.Edges.EndNodes;
labeledge(H,st(:,1),st(:,2),GF.Edges.Weight);

Open Script

Create and plot a weighted graph. The edge weights represent flow capacities.

s = [1 1 2 3 3 4 4 5 5];
t = [2 3 3 2 5 5 6 4 6];
weights = [0.77 0.44 0.67 0.69 0.73 2 0.78 1 1];
G = digraph(s,t,weights);
plot(G,'EdgeLabel',G.Edges.Weight,'Layout','layered')

Find the maximum flow and minimum cut of the graph.

[mf,~,cs,ct] = maxflow(G,1,6)

mf =

    0.7300


cs =

     1
     2
     3


ct =

     4
     5
     6

Plot the minimum cut, using the cs nodes as sources and the ct nodes as sinks. Highlight the cs nodes as red and the ct nodes as green. Note that the weight of the edge that connects these two sets of nodes is equal to the maximum flow.

H = plot(G,'Layout','layered','Sources',cs,'Sinks',ct, ...
    'EdgeLabel',G.Edges.Weight);
highlight(H,cs,'NodeColor','red')
highlight(H,ct,'NodeColor','green')

Input Arguments

collapse all

Input graph, specified as either a graph or digraph object. Use the graph function to create an undirected graph or the digraph function to create a directed graph.

For more information, see graph or digraph.

Example: G = graph(1,2)

Example: G = digraph([1 2],[2 3])

Node pair, specified as separate arguments of scalar node indices or character vector node names.

Example: mf = maxflow(G,'A','B')

Example: mf = maxflow(G,1,10)

Data Types: double | char

Maximum flow algorithm, specified as one of the entries in the table.

    Note:   You can only specify nondefault algorithm options with a directed graph.

OptionDescription
'searchtrees' (default)

Uses the Boykov-Kolmogorov algorithm. Computes the maximum flow by constructing two search trees associated with nodes s and t.

'augmentpath'

Uses the Ford-Fulkerson algorithm. Computes the maximum flow iteratively by finding an augmenting path in a residual directed graph.

The directed graph cannot have any parallel edges of opposite direction between the same two nodes, unless the weight of one of those edges is zero. So if the graph contains edge [i j], then it can contain the reverse edge [j i] only if the weight of [i j] is zero and/or the weight of [j i] is zero.

'pushrelabel'

Computes the maximum flow by pushing a node's excess flow to its neighbors and then relabeling the node.

The directed graph cannot have any parallel edges of opposite direction between the same two nodes, unless the weight of one of those edges is zero. So if the graph contains edge [i j], then it can contain the reverse edge [j i] only if the weight of [i j] is zero and/or the weight of [j i] is zero.

Example: mf = maxflow(G,'A','D','augmentpath')

Output Arguments

collapse all

Maximum flow, returned as a scalar.

Directed graph of flows, returned as a digraph object. GF contains the same nodes as G, but only contains those edges of G that have a nonzero flow.

Minimum cut source node IDs, returned as a scalar node index, vector of node indices, character vector node name, or cell array of character vectors containing node names.

  • If s and t specify numeric node indices, then cs and ct also contain node indices.

  • If s and t specify node names, then cs and ct also contain node names.

Minimum cut target node IDs, returned as a scalar node index, vector of node indices, character vector node name, or cell array of character vectors containing node names.

  • If s and t specify numeric node indices, then cs and ct also contain node indices.

  • If s and t specify node names, then cs and ct also contain node names.

More About

collapse all

Maximum Flow

In the context of maximum flow, the edges in a graph are considered to have a capacity as represented by the edge weight. The capacity of an edge is the amount of flow that can pass through that edge. Therefore, the maximum flow between two nodes in a graph maximizes the amount of flow passing from the source node, s, to the target node, t, based on the capacities of the connecting edges.

Minimum Cut

A minimum cut partitions the directed graph nodes into two sets, cs and ct, such that the sum of the weights of all edges connecting cs and ct (weight of the cut) is minimized. The weight of the minimum cut is equal to the maximum flow value, mf.

The entries in cs and ct indicate the nodes of G associated with nodes s and t, respectively. cs and ct satisfy numel(cs) + numel(ct) = numnodes(G).
